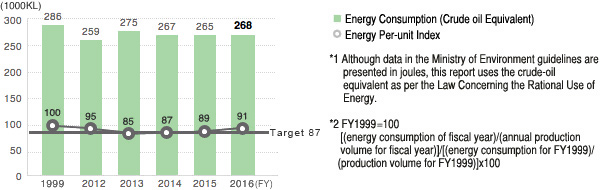

JSR's Responsible Care Committee adopted a medium-term Independent Environmental Preservation Plan. This plan contains per-unit targets for energy reduction, which serve as measures to help prevent global warming. In order to reach these targets, JSR is engaged in E-100 Plus project activities targeted at reducing energy and resource use. However, we were unable to meet our per-unit energy reduction targets in FY2016 due to production decreases and other factors. JSR remains committed to energy conservation activities and will continue to work toward reducing energy consumption.
With increasing moves in recent years by businesses to manage greenhouse gases indirectly emitted from their supply chains and disclose their emissions at the global level, JSR has launched initiatives based on the Basic Guidelines on Accounting for Greenhouse Gas Emissions Throughout the Supply Chain issued by Ministry of the Environment, Government of Japan.
Category | FY2015 emissions | FY2016 emissions | Emissions subject to calculation | |||
---|---|---|---|---|---|---|
CO2 (t) |
Percentage (%) |
CO2 (t) |
Percentage (%) |
|||
I. Direct emissions |
397,548 | 56.5 | 379,019 | 54.8 | Direct emissions from the use of fuel and industrial processes by the reporting company |
|
II. Energy-derived indirect emissions |
261,351 | 37.2 | 272,225 | 39.3 | Emissions from the use of electricity and heat purchased by the reporting company |
|
III. Other indirect emissions |
44,219 | 6.3 | 40,597 | 5.9 | ||
Other indirect emissions (breakdown of Scope 3) | ||||||
Category 1 | Purchased goods and services | - | - | - | - | Emissions from activities up to the manufacture of raw materials, parts, purchased goods, sales-related materials, etc. - Not calculated. |
Category 2 | Capital goods | - | - | - | - | Emissions from the construction and manufacturing of the reporting company's capital goods - Not calculated. |
Category 3 | Fuel and energy related activities not included in Scope 1 or 2 | 10,273 | 23.2 | 6,551 | 16.1 | Emissions from the procurement of fuel used in power generation, etc., for electricity and heat procured from other entities |
Category 4 | Transportation and distribution (upstream) | 12,028 | 27.2 | 12,172 | 30.0 | (1) Emissions from the distribution of raw materials, parts, purchased goods, sales-related materials, etc., up to delivery to the reporting company (2) Emissions (emissions from the distribution paid for by the reporting company) amount of activity from distribution services other than (1) above (transport, handling, and storage) purchased in the fiscal year of the report: Amount of domestic and overseas shipment distribution |
Category 5 | Waste generated in operations | 8,569 | 19.4 | 9,343 | 23.0 | Emissions from the transportation and processing of waste generated by the reporting company |
Category 6 | Business travel | 321 | 0.7 | 327 | 0.8 | Emissions from employee business travel |
Category 7 | Employee commuting | 1,159 | 2.6 | 1,182 | 2.9 | Emissions from employee transportation when commuting to and from the place of business |
Category 8 | Leased assets (upstream) | 43 | 0.1 | 47 | 0.1 | Emissions from the operation of assets leased to the reporting company (excluding emissions calculated under Scope 1 or 2) |
Category 9 | Transportation and distribution (downstream) | 11,770 | 26.6 | 10,916 | 26.9 | Emissions from the transport, storage, cargo handling, and retail sales of products (limited to those items not paid for by the reporting company) |
Category 10 | Processing of sold products | - | - | - | - | Emissions from the processing of intermediate products by the reporting company - Not calculated. |
Category 11 | Use of sold products | - | - | - | - | Emissions from the use of products by users (consumers and companies) - Not calculated. |
Category 12 | End-of-life treatment of sold products | - | - | - | - | Emissions from the transportation and processing of products upon disposal by users (consumers and companies) - Not calculated. |
Category 13 | Leased assets (downstream) | 56 | 0.1 | 59 | 0.2 | Emissions from the operation of assets leased to other entities |
Category 14 | Franchises | 0 | 0.0 | 0 | 0.0 | Emissions from franchises
- No emissions; business structures are not franchises. |
Category 15 | Investments | - | - | - | - | Emissions related to the management of investments - Not calculated. |
Scope 3 total (Categories 1 through 15) |
44,219 | 100 | 40,597 | 100 |
JSR set a CO2 emission reduction target under the Medium-Term Independent Environmental Preservation Plan and is striving to meet this target through various energy saving activities.
Reduced the total CO2 emissions from JSR 's three plants by 6% in total compared to FY1991
Review of CO2 reduction targets with regard to the Paris Agreement (FY2017)
In FY2013, JSR established its "System to Reduce Total CO2 Emissions from Three plants by 6% Compared to FY1991" by upgrading its energy-saving technologies through the introduction of fuel conversion at the Kashima Plant (Kashima South Joint Power Corporation) and a sludge dewatering system at the Yokkaichi Plant. In FY2016, JSR successfully reduced CO2 emissions by approximately 9.5% over FY1991 levels to achieve the reduction target. The per-unit index was 65 in FY2016, which represents a continuing decrease in comparison with FY1991 on a scale of 100.
Natural gas-fired turbine cogeneration system (Yokkaichi Plant)
The Yokkaichi Plant installed a natural gas-fired turbine cogeneration system in April 2010. By using natural gas instead of coal, a heavy oil-fired steam boiler and condensing steam turbine system, this new system helped us to cut CO2 emissions by approximately 38,000 tons in FY2016.
Sludge dryer system (Yokkaichi Plant)
In FY2013 a sludge drying system was adopted at the Yokkaichi Plant in order to dry the sludge generated from its general wastewater treatment facility. Previously, sludge containing a high percentage of water was burned with combustion support fuel (heavy oil); but drying allows us to use the sludge itself as fuel, which in turn allows us to reduce the amount of combustion support fuel we use. This led to a reduction in CO2 emissions of approximately 1,100 tons in FY2016.
8% reduction compared to the average power consumption from the base years of FY2010 and FY2011
The Tokyo Metropolitan Government requires major tenants of a building occupying 5,000 square meters or more in floor area or consuming six million kWh or more of electricity annually to reduce its CO2 emissions under the Tokyo Metropolitan Ordinance on Environmental Preservation.
Although we are not subject to this obligation, we are promoting energy conservation on our own initiative by voluntarily setting a specific power saving target.
In FY2016, as a result of these efforts, our power consumption decreased by 21% over the average consumption of the base years.
As part of our environmental efforts in transportation, we have taken systematic steps to reduce our energy use as a designated shipper under the FY2007 amended Energy Conservation Law. We are working to reduce per-unit transport energy by an average of at least 1% per annum by using larger tanker trucks, and by shifting from road to rail and water transport.
In FY2016, as a result of new policies to transport goods and raw materials by railway and ship, modal share improved 1% over the previous fiscal year, which led to a reduction of 1% in per-unit transportation energy over the previous year.
FY | 2012 | 2013 | 2014 | 2015 | 2016 |
---|---|---|---|---|---|
Transport volume (million ton-kilometers*3) | 473 | 471 | 492 | 523 | 511 |
Rail/Sea transport ratio (%) | 83 | 82 | 83 | 85 | 86 |
Energy consumption level (kiloliters: converted to crude oil) | 8,726 | 8,655 | 9,026 | 9,388 | 9,112 |
Energy per-unit (kiloliters/1,000 ton-kilometers) | 0.0184 | 0.0184 | 0.0184 | 0.0180 | 0.0178 |
CO2 emission level (tons) | 22,218 | 21,907 | 22,960 | 23,984 | 23,333 |
- Transportation and delivery of raw materials and other materials (tons) |
10,294 | 9,686 | 10,489 | 12,028 | 12,172 |
- Transportation of waste from plants (tons) |
219 | 175 | 164 | 186 | 245 |
- Transportation and delivery of products (tons) |
11,705 | 12,046 | 12,307 | 11,770 | 10,916 |
*3 Ton-kilometer: Freight Tonnage (Ton) x Transport Distance (km)

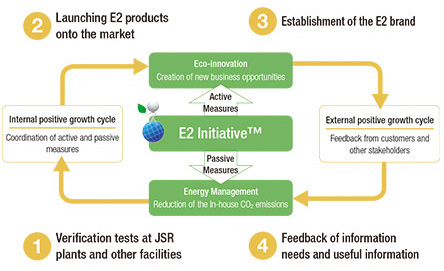

The JSR Group's "E2 InitiativeTM" is an "environmental value creation" concept that provides clarification on what we need to keep in mind as we manufacture our products and develop our business. It is also used as a concept that allows us to work toward solving problems related to energy, resources, and climate change as we carry out our business activities.
Because both humans and a large number of other living things share the Earth and its resources, we must make an earnest effort to tackle environmental issues. The JSR Group has adopted its E2 InitiativeTM as a concept to simultaneously reduce its environmental impact and create new business opportunities through environmentally friendly products.
The E2 InitiativeTM is based on "Eco-innovation," which is designed to create business opportunities based on the environment, and Energy Management, which is focused on reducing CO2 emissions. It is a concept that allows us to create value both in active and passive ways. As we have shifted our concept of value from the conventional two approaches of differentiation and cost, our new concept of environmental performance has become essential.
By using Lifecycle Assessment (LCA) to evaluate the environmental impact of our products from the design stage in product development to the use of the product, we are working to solve environmental problems throughout business operations.
LCA (Life Cycle Assessment) is a method of quantitatively assessing environmental impact throughout the lifecycle of each product, from the materials procurement stage to manufacturing, sales, use, and disposal.
Implementation of LCA requires that we calculate the amount of resources used when manufacturing a product and the amount of CO2 emissions during all stages of the lifecycle of a product (LCI data).
The entire synthetic rubber industry, including the JSR Group, has engaged in LCI data calculations for representative synthetic rubber products.
The results of these calculations are stored in a database maintained by the Japan Environmental Management Association for Industry LCA Forum. For LCI data of our fine chemical products, we keep track of the amount of CO2 produced during the production.
We have started to apply LCA from the R&D stage and to operate a system of developing product designs with consideration for CO2 emissions. We have made trial LCA calculations for approximately 104 product groups (159 representative grade types) as of March 31, 2016.
We continue to make LCA calculations for newly developed product groups and grades.
The JSR Group offers electrode binders (adhesive) for lithium-ion secondary batteries. These binders have experienced an increase in demand due to efforts for the effective use of energy and the creation of a low-carbon society.
Lithium-ion secondary batteries are used in hybrid and electric vehicles. As with normal dry-cell batteries, these batteries have positive and negative electrodes.
These electrodes are made by bonding carbon materials or metal oxide particles, which function as the activating material, to copper or aluminum foil (collector). Binders provided by the JSR Group are used in this binding process.

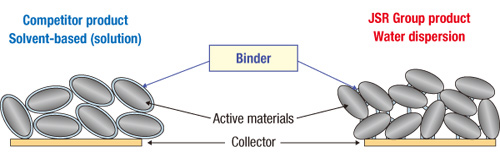

JSR Group binders are made by dispersing resin in water, which has a low environmental impact. This point bonding method also significantly reduces the bonding area of the resin that interferes with the electrical continuity of the active substance. This results in the creation of electrodes with low electrical resistance.
Water dispersion enables low electrical resistance via point bonding.
These electrodes demonstrate the superior performance of JSR Group polymer design technologies, water dispersion technologies, and battery performance evaluation technologies.
Not limited to electric vehicles, our materials are used in a wide variety of products including computers, cellphones, electric vacuum cleaners, and so on.
Lithium-ion capacitors, which the JSR Group positions as one of its strategic businesses in the JSR2016 mid-term business plan, are an electricity storage device capable of instant charging and discharging together with a long lifespan and little propensity for self-discharge. They are currently at the center of global attention as a key technology for the more efficient use of energy, and their market is expected to expand significantly.
JM Energy Corporation, the industry's leading company, commenced the world's first high volume production of lithium-ion capacitors at the end of 2008. The company's current aim is to develop and offer lithium-ion capacitors with higher performance by utilizing the JSR Group's material and precision processing technologies to expand their applications to various fields.
Laminated cells
Laminated-cell modules
Laminate cells are thin, lightweight, compact, and have excellent heat radiation. Due to their ease of installation, they can be used in a wide range of applications. A module is a package of multiple cells.
Square cells
Square-cell modules
Robust can-type modules. JM Energy adopted the world's first prismatic can structure as an alternative to the more common cylindrical structure. These modules excel in heat radiation efficiency and ease of implementation.

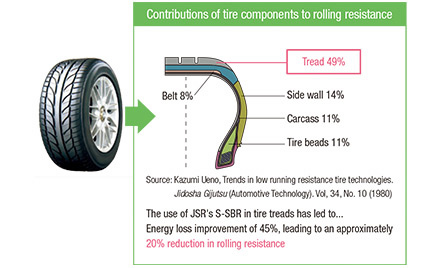

Fuel-efficient tires are environmentally-friendly products and yet maintain their ability to stop safely and securely. The JSR Group's solution polymerization SBR (S-SBR) has received positive feedback from customers. The JSR Group designed S-SBR using technology that more readily facilitates rubber molecules and tire reinforcing material molecules to bond tightly, which reduces internal friction and rolling resistance*4. In addition, this is achieved without changing the characteristics of rubber that enable tires to stop. S-SBR allows large reductions in environmental impact through the entire lifecycle of the tire, from the material selection and its usage to disposal.
Automobiles will still require tires even after automotive engines are replaced with electric motors. Thus, demand for S-SBR is high both in countries and regions where environmental standards are high, such as Japan and Europe, and in emerging nations where reducing environmental impact is an urgent issue. These tires are currently manufactured at the Yokkaichi Plant in Japan and at JSR BST Elastomer Co., Ltd. in Thailand. We are also considering production operations in Hungary. These global deployments are being undertaken in anticipation of market expansion in 2020. They are carried out based on our supply chain management concepts, which are designed to ensure that production takes place in locations close to markets, ensuring stable material procurement so that the impact due to logistics can be reduced and a stable supply of product can be ensured. By meeting the global demand for fuel-efficient tires using the E2 InitiativeTM concept, we will contribute to solving global environment issues.
*4 Rolling resistance: Resistance in the direction opposite to the direction of tire rotation. Caused by tire deformation, ground contact friction, and air resistance.
Next-generation housing developed by the University of Tokyo (CALGRIPTM used in ceilings and floors)
CALGRIPTM being installed in ceilings
Latent heat storage material CALGRIPTM is a material that is able to maintain a specific temperature between -20 and +80°C over long periods of time. CALGRIPTM is utilized in fields that require energy saving or accurate temperature control such as the transportation and storage of pharmaceuticals and foods, building materials, and air conditioning.
The product was used in next generation energy-saving model houses developed by the University of Tokyo and Chiba University and exhibited at the "ENEX2014/Smart Energy Japan 2014" exhibition held at Tokyo Big Sight. In the University of Tokyo's model house, CALGRIPTM was installed in the ceilings and floors, storing solar radiation heat during the daytime and discharging it during the night to maintain a comfortable room temperature even in the winter. CALGRIPTM contributes to the reduction of energy consumption by minimizing the use of air conditioners/heaters.
SIFCLEARTM is used in black portions of the walls of the Yokkaichi Plant Main Building
SIFCLEARTM is used on the right butadiene tank at the Kashima Plant
Painted with highly durable stain-resistant paint that contains SIFCLEARTM (Photo courtesy of SHOCHIKU, Co., Ltd. and Kabuki-za Co., Ltd.)
SIFCLEARTM is used in paints to make them resistant to contamination, helping maintain cleanness in appearance over the long-term. The high durability of the paint film reduces the need for frequent re-painting, contributing to resource conservation. In particular, when used in heat reflection paints, heat reflection effect is maintained over the long-term, achieving significant energy savings. It is also attracting attention as an environmentally-friendly material because of its ability to prevent Volatile Organic Compounds (VOCs) and the generation of odor.
(Top) Colored BIOLLOYTM pellets
(Bottom) Bottles that contain BIOLLOYTM
BIOLLOYTM is a bioplastic produced by combining a thermoplastic resin with plant-derived polylactic acid. Compared to existing general bioplastics, BIOLLOYTM has five times greater shock resistance. The product is expected to be used in containers for cosmetics, shampoos, and other products that require thin, light, and eco-friendly materials, as well as in various other applications including automotive interiors, office automation equipment, and household appliances.
As the miniaturization of transistors and wiring in IC chips continues to advance, demand for high-performance equipment used to build IC chips during semiconductor mounting processes continues to increase. JSR, IBM Japan, and Senju Metal Industry Co., Ltd. have worked together to develop a revolutionary injection molded solder (IMS) process that enables advanced high-density semiconductor mounting processes.
IMS is a technology in which a specialized soldering device directly injects solder into the opening of mask resist material formed on substrates. The mask resist material developed by JSR can resist temperatures up to approximately 250°C, which is the temperature at which solder is used. This enables extremely fine solder bump*6 patterns of 30 microns to be formed anywhere on substrates.
This eliminates the significant amount of plating required with conventional electrodeposition methods, the corresponding maintenance, and the large amount of waste disposal. With a 100% utilization ratio of solder, this environmentally friendly process generates zero process inefficiency and reduces waste products. In comparison with conventional methods, this method simplifies processes and has low environmental impact, and so we hope that this method will be utilized more and more.

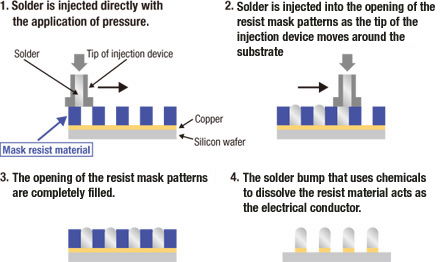

Solder bump forming process using injection molding
Finished solder bumps (bump diameter: 50 microns)
*5 Mask (photo) resist material: Resin for which solubility changes with light. Patterns can be formed by applying this material to wafers and then exposing it to light and developing it with chemicals. This material protects the wafer surface.
*6 Bump: A protrusion of solder that acts as an electrode to electrically connect the semiconductor device to the substrate.
HUSHLLOYTM*7 is an innovative material designed to reduce squeak noise caused by plastic joints in vehicle interiors. Conventionally, squeak noise prevention is achieved by applying grease or attaching felt fabric to the components, but the use of HUSHLLOYTM has made these countermeasures unnecessary, allowing the component manufacturers to shorten their production process. In addition, since the material itself has the effect of minimizing squeak noise, maintenance is not required for a longer period of time.
*7 HUSHLLOYTM is a registered trademark of TechnoPolymer Co., Ltd.
